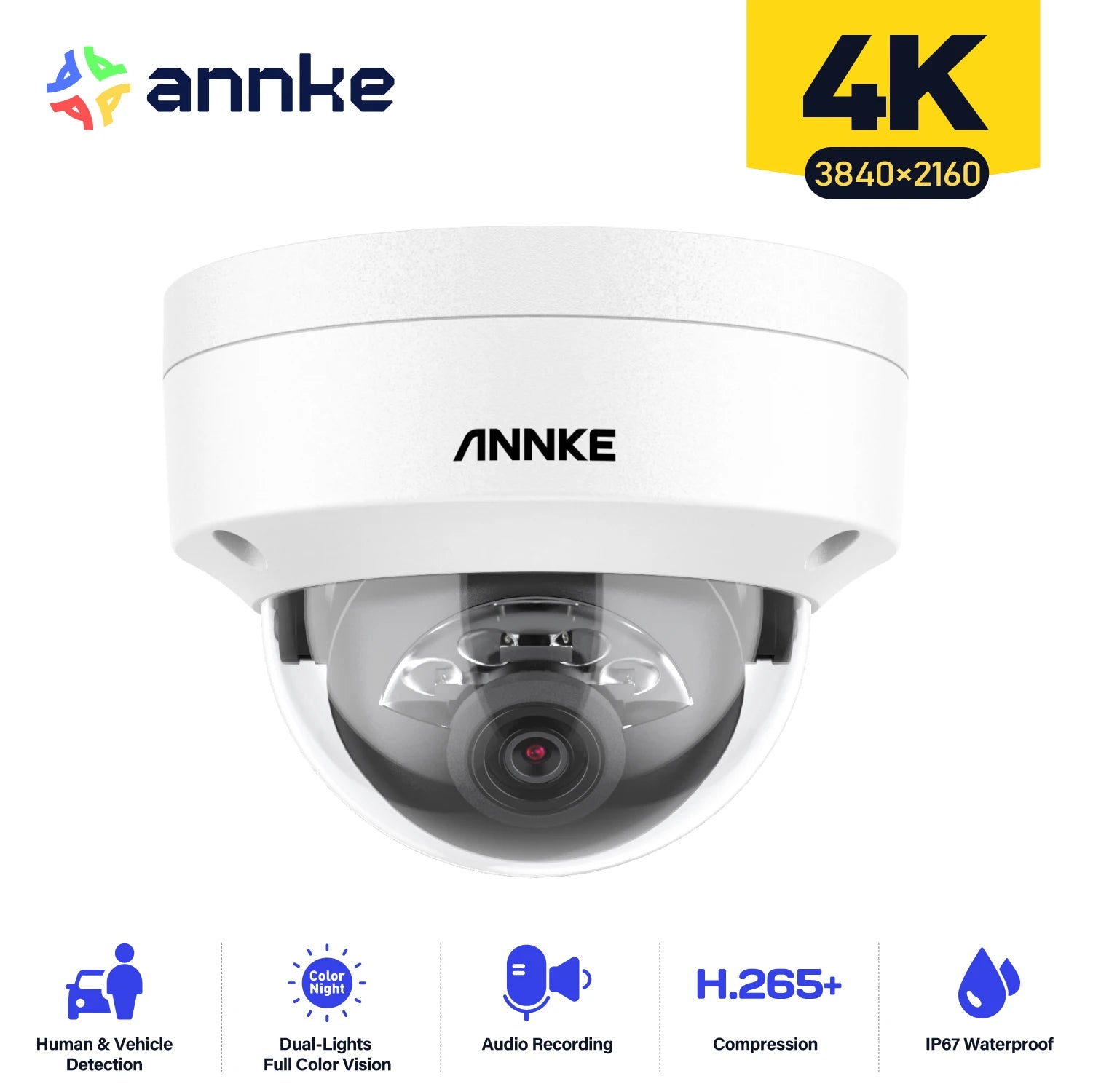

ANNKE C800 4K PoE Security Camera Outdoor IK10 8MP Smart Dual Light Built-in Mic Apple or Google app
ANNKE C800 4K PoE Security Camera Outdoor IK10 8MP Smart Dual Light Built-in Mic Apple or Google app
SPECIFICATIONS
Audio Output: None
Brand Name: ANNKE
Certification: CE,FCC
Color: WHITE
Connectivity: IP/Network Wired
Dimensions (L x W x D)(mm): 120 * 92.2 mm
High Definition: 8.0 Megapixels
High-concerned chemical: None
IP Rating: IP67
IR Distance(m): Up to 100ft/30m
Internal Storage: None
Lens (mm): 4mm
Lens Quantity: Single Lens
Megapixels: 8MP
Minimum Illumination(Lux): 0.01
Model Number: I91DF
Power Supply: With Poe
Power Supply(V): DC12V;PoE (802.3af)
Sensor: CMOS
Sensor Brand: Sony
Shell Material: Metal
Special Features: Vandal-proof
Style: Dome Camera
Supported Mobile Systems: Android,iOS
Supported Operating Systems: No
TF Card: None
Viewing Angle : 70°
Zoom: None
Zoom type: None
is_customized: No
IP Camera | ||
Camera |
Image Sensor |
1/2.4" Progressive Scan CMOS |
Max resolution |
3840*2160(8MP) |
|
Main Stream |
50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|
Substream |
50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265+/H.265/H.264+/H.264 |
|
Video Bitrate |
32 Kbps - 16 Mbps |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
|
Audio Input |

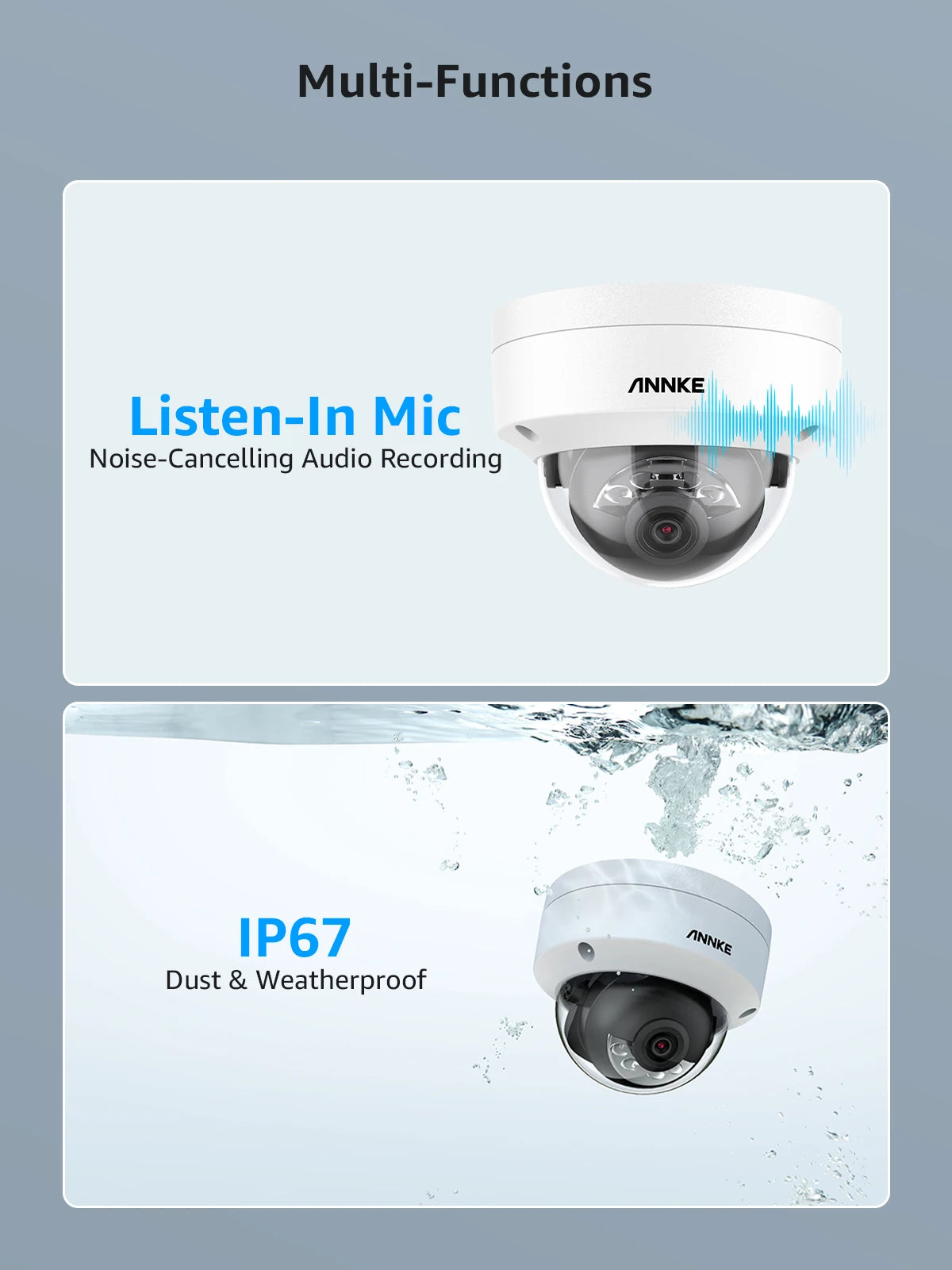

Built-in Microphone, record with audio |
|
Lens |
4 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
|
Angle of View |
Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
|

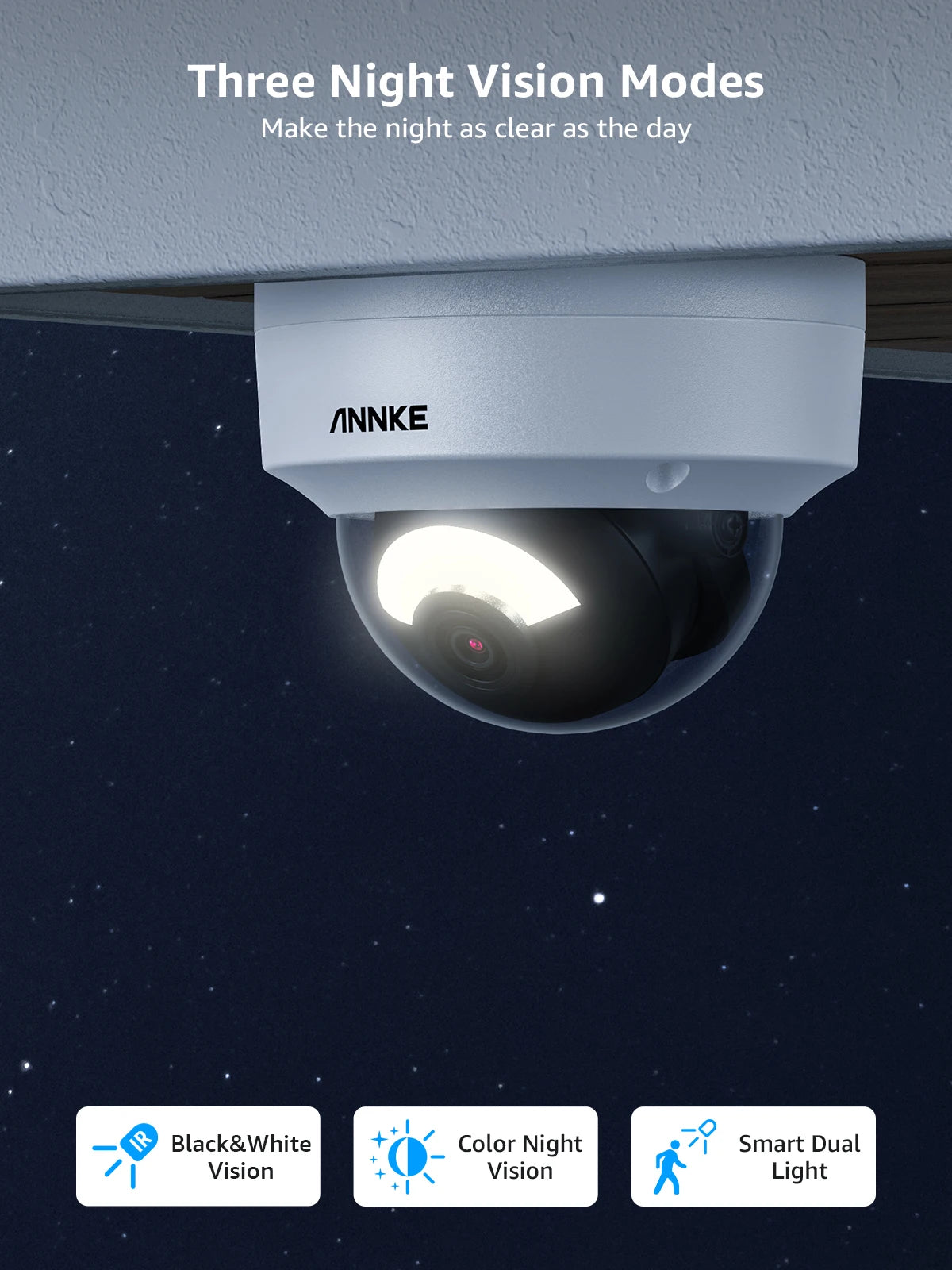

Supplement Light Type |
Smart Dual-Light, IR, White Light |
|
Supplement Light Range |
Up to 30 m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120 dB WDR |
|
Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
|
API |
Open Network Video Interface Version (Profile S, Profile T, Profile G) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
Privacy Mask |
4 programmable polygon privacy masks |
|
General Function |
Rotate mode, mirror, password protection, remote access |
|
Ethernet |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
General |
Housing |
Metal & Plastic |
Color |
White |
|
Storage |

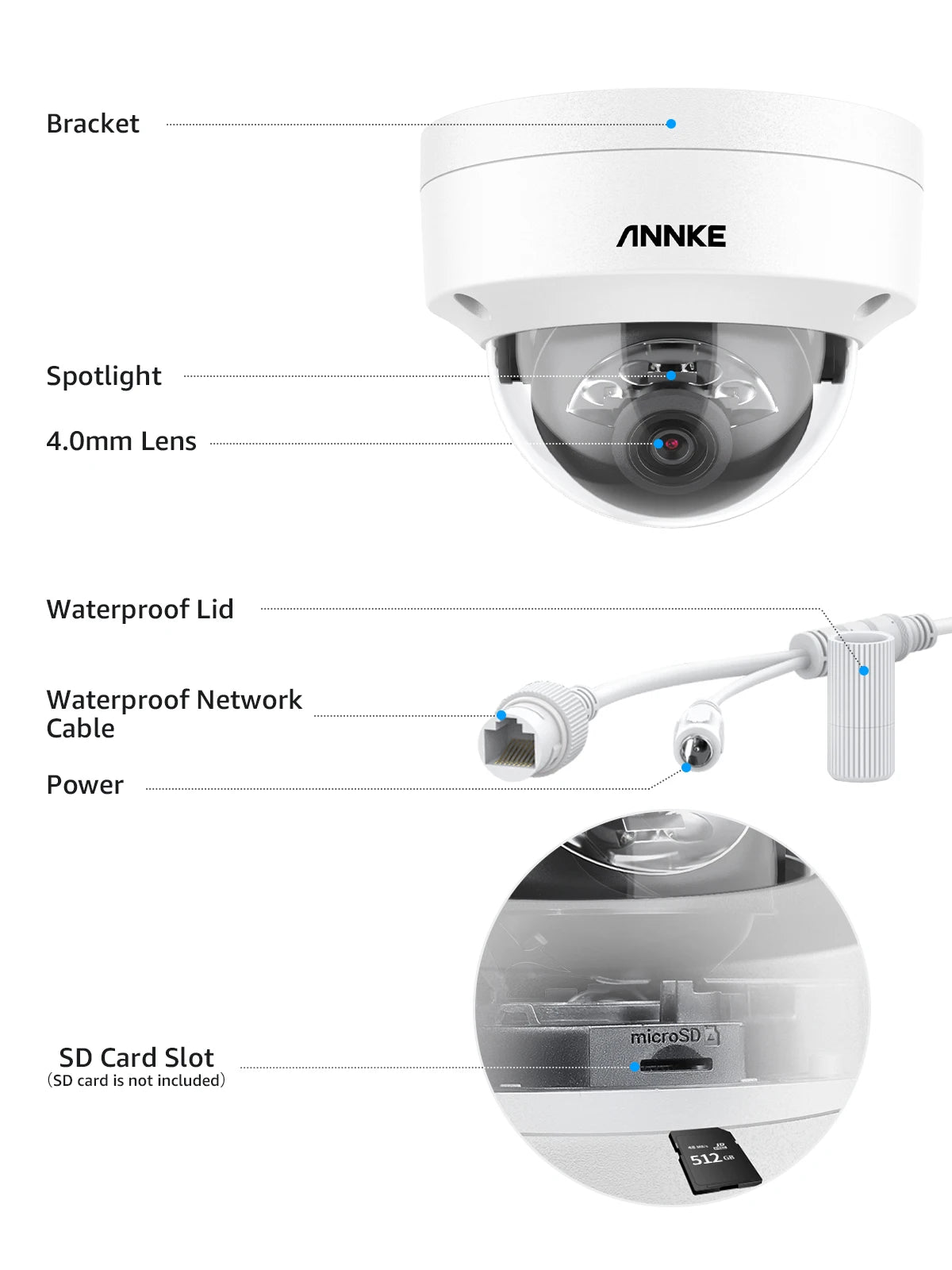

Built-in microSD/SDHC/SDXC Slot, up to 512 GB |
|
Hardware Reset |
Yes |
|
Operating Power |

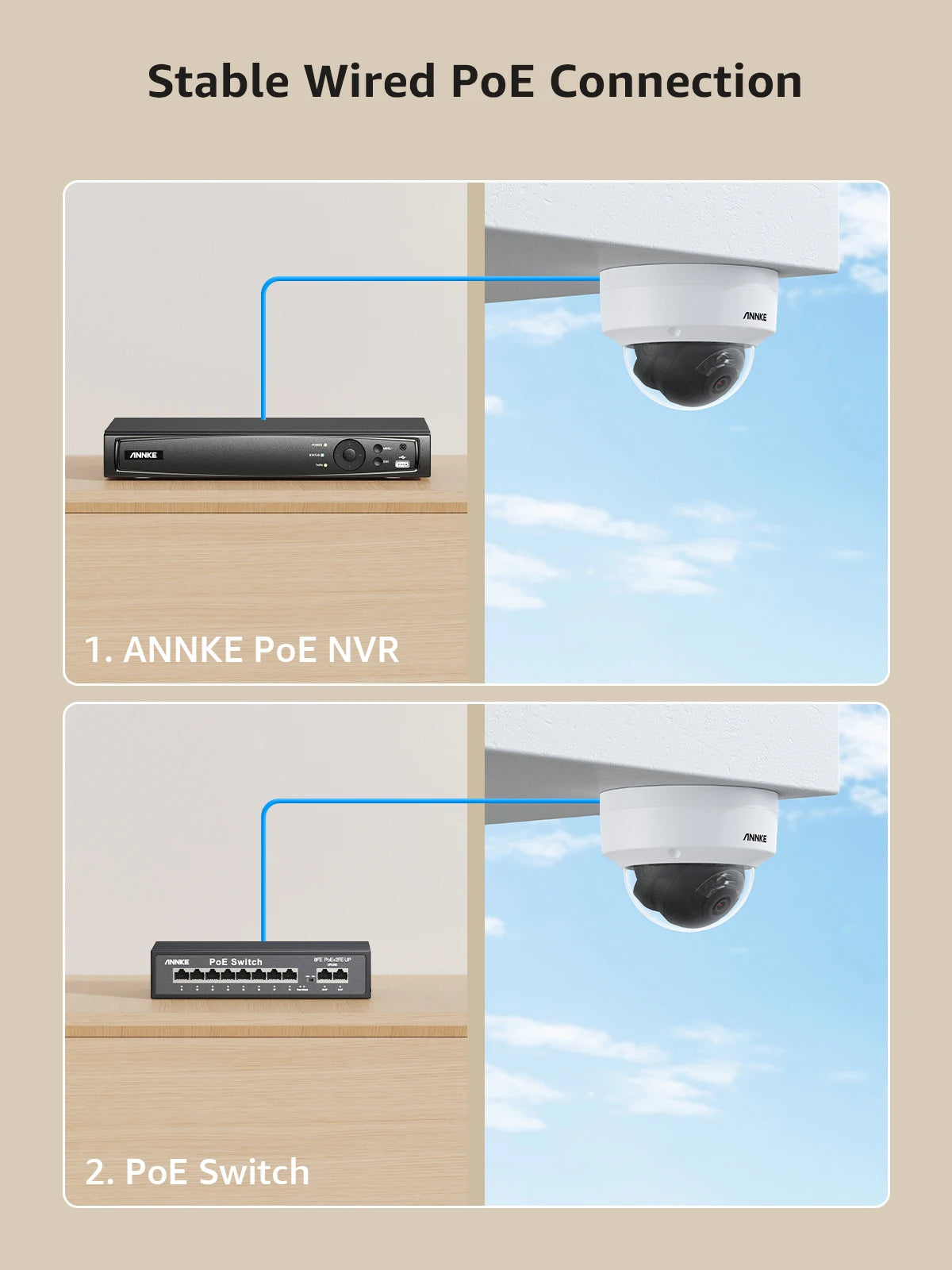

DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W |
|
Operating Temperature |
-22 °F – 140 °F/-30 °C – 60 °C |
|
Indoor/Outdoor Use |
Indoor/Outdoor |
|
Interface Protection |

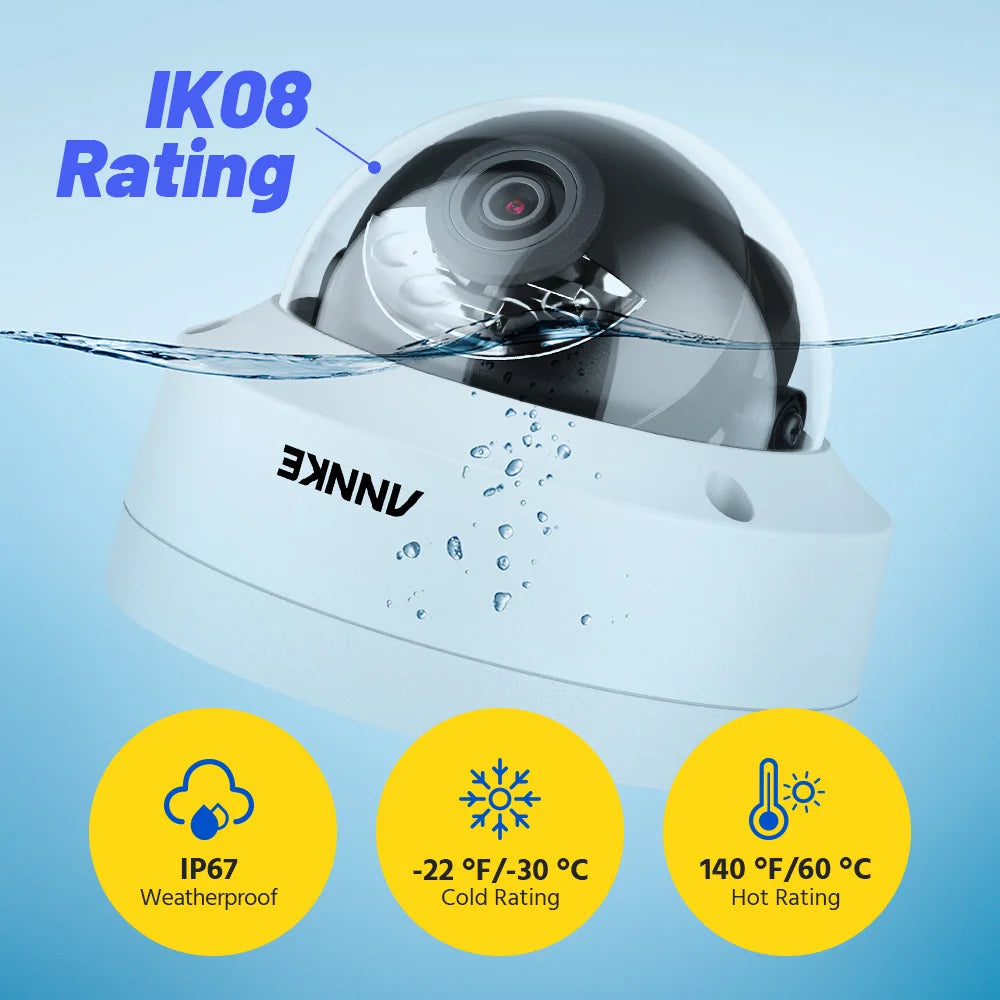

IP67 & IK08 |
|
Dimension (L X W X H) |
Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84") |
|
Weight |
1.2 lb./550 g |
|
