Installation

1.Remove the outer casing.
2.Select the installation position and mark the punch position. (Select 5 installation points)
3.Punch holes at the mark points. (Tool: an 8mm/0.3inch drill)

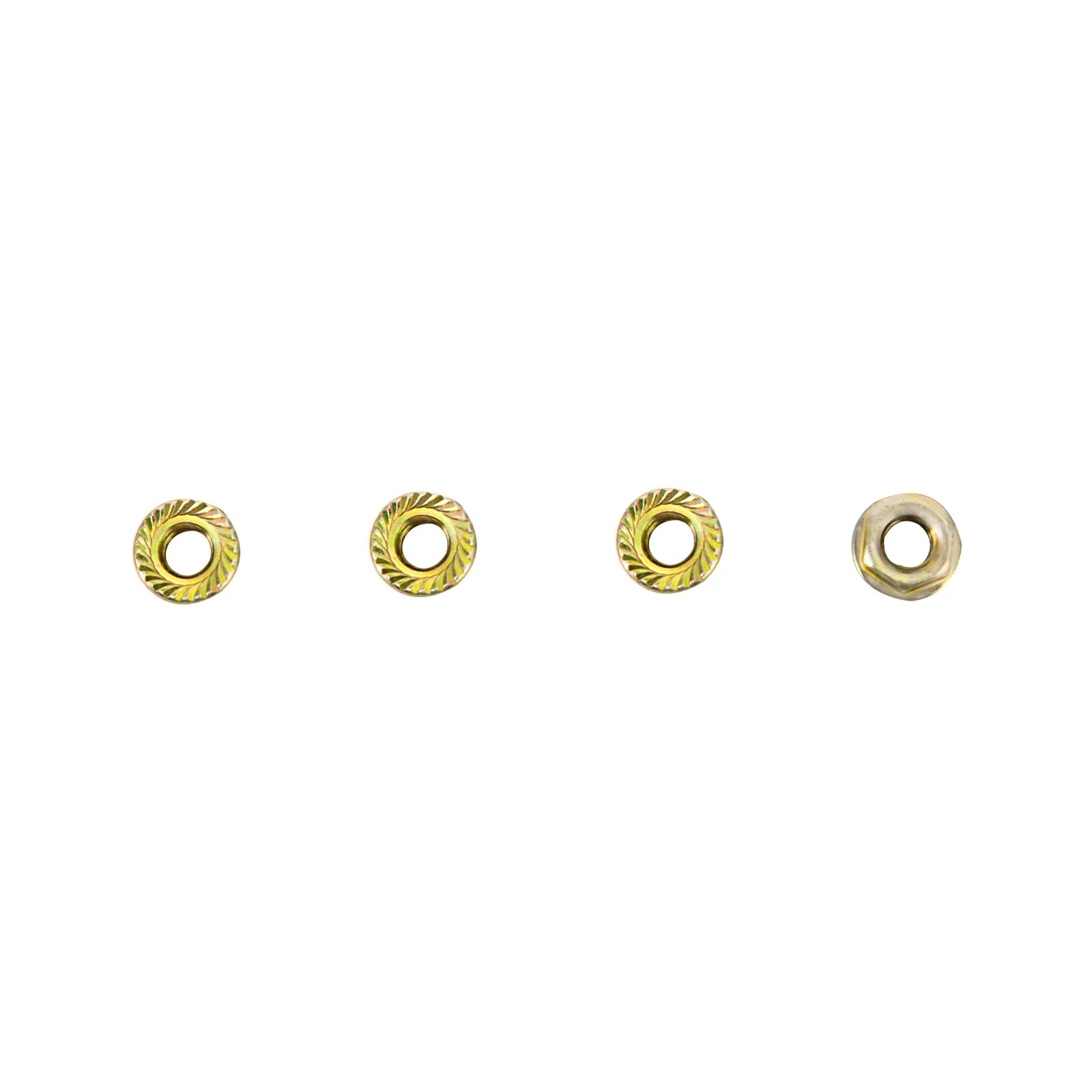

4.Use a pull riveter to fix the pull rivet nut at the marked hole.

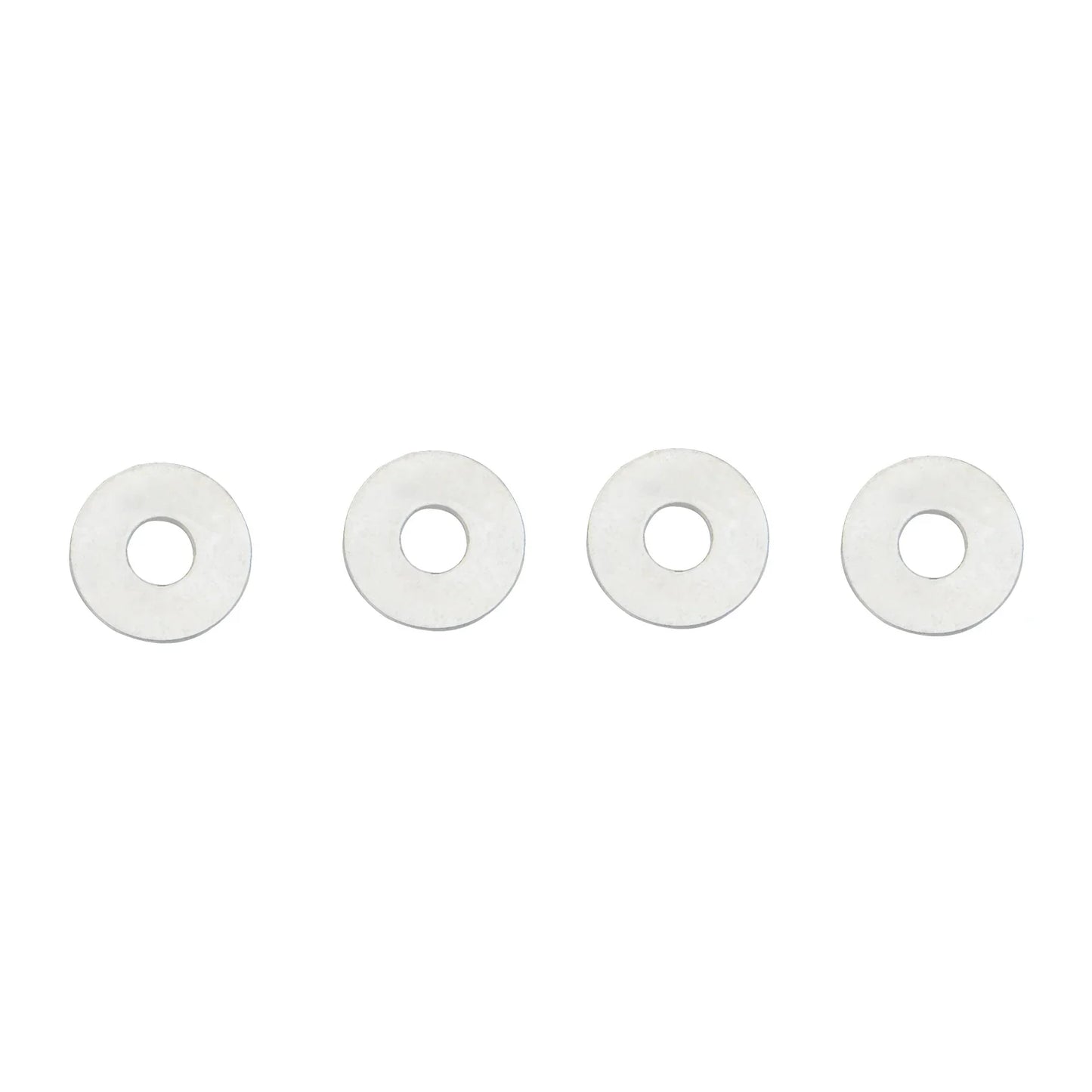

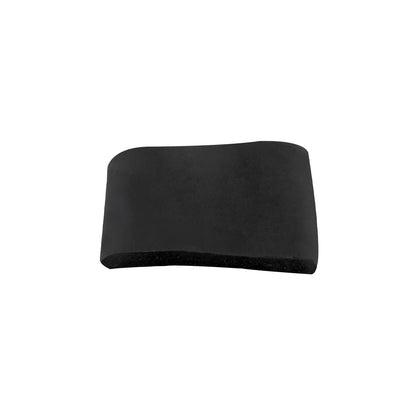

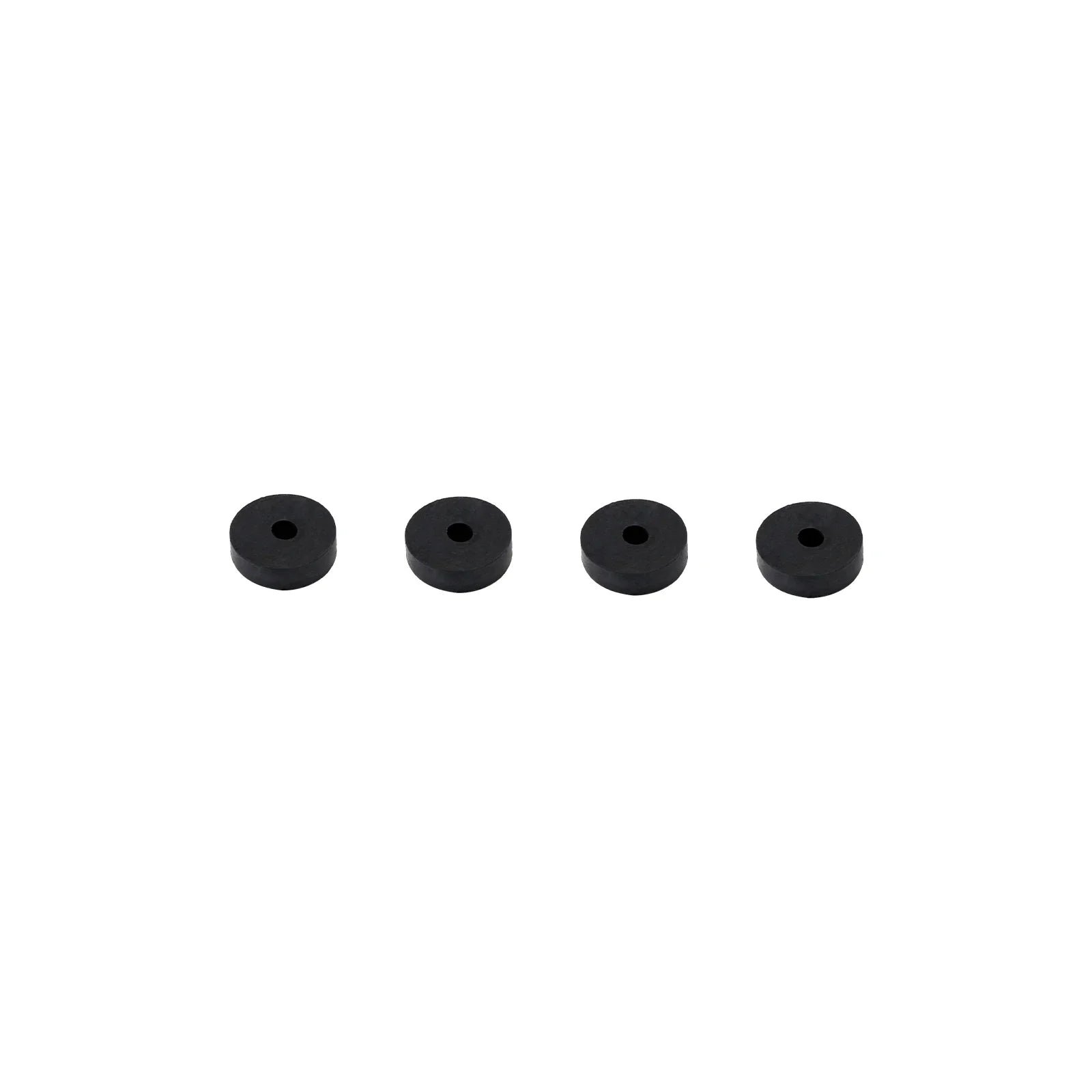

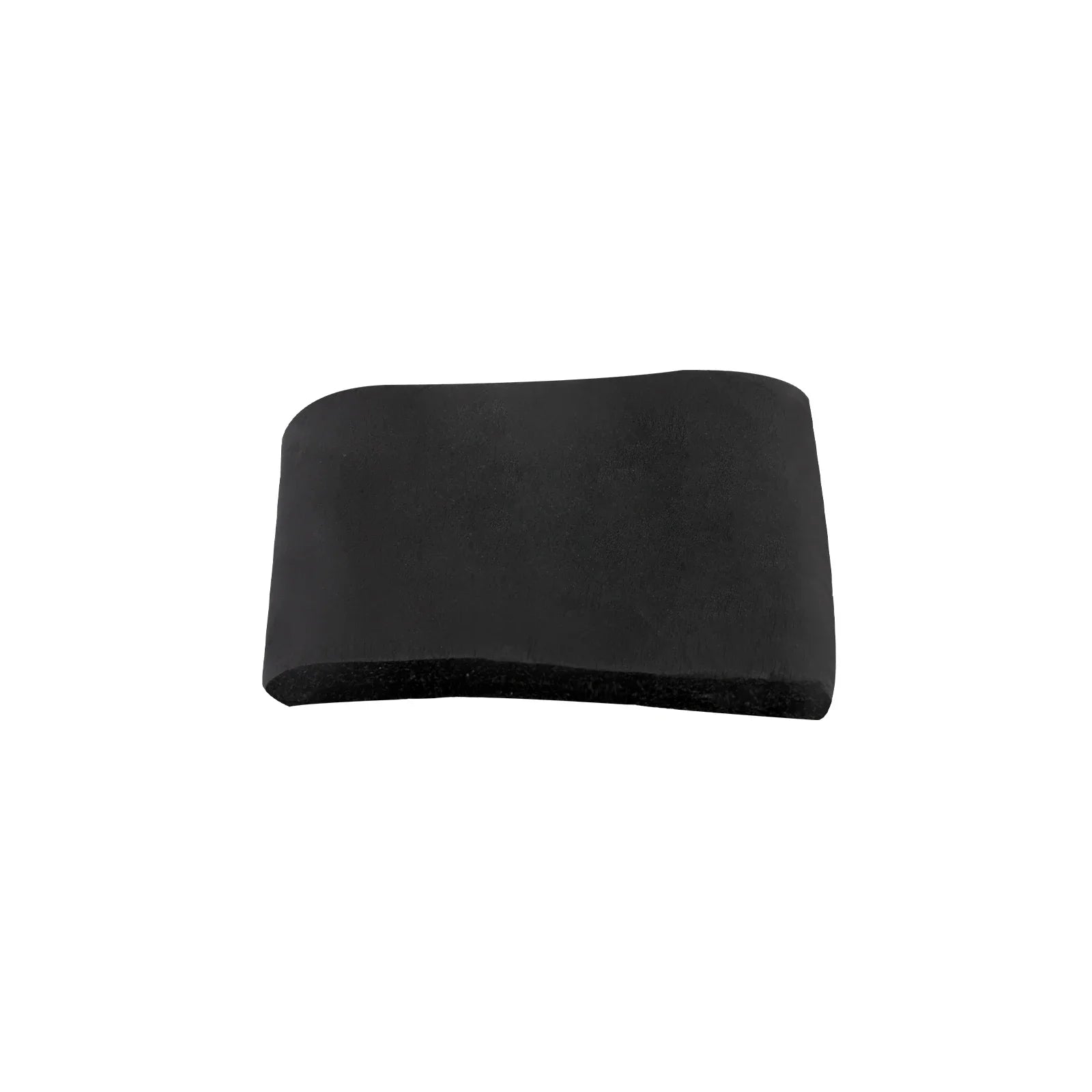

5.Fixed the damping pad and sleeve at the marked points on the external machine.

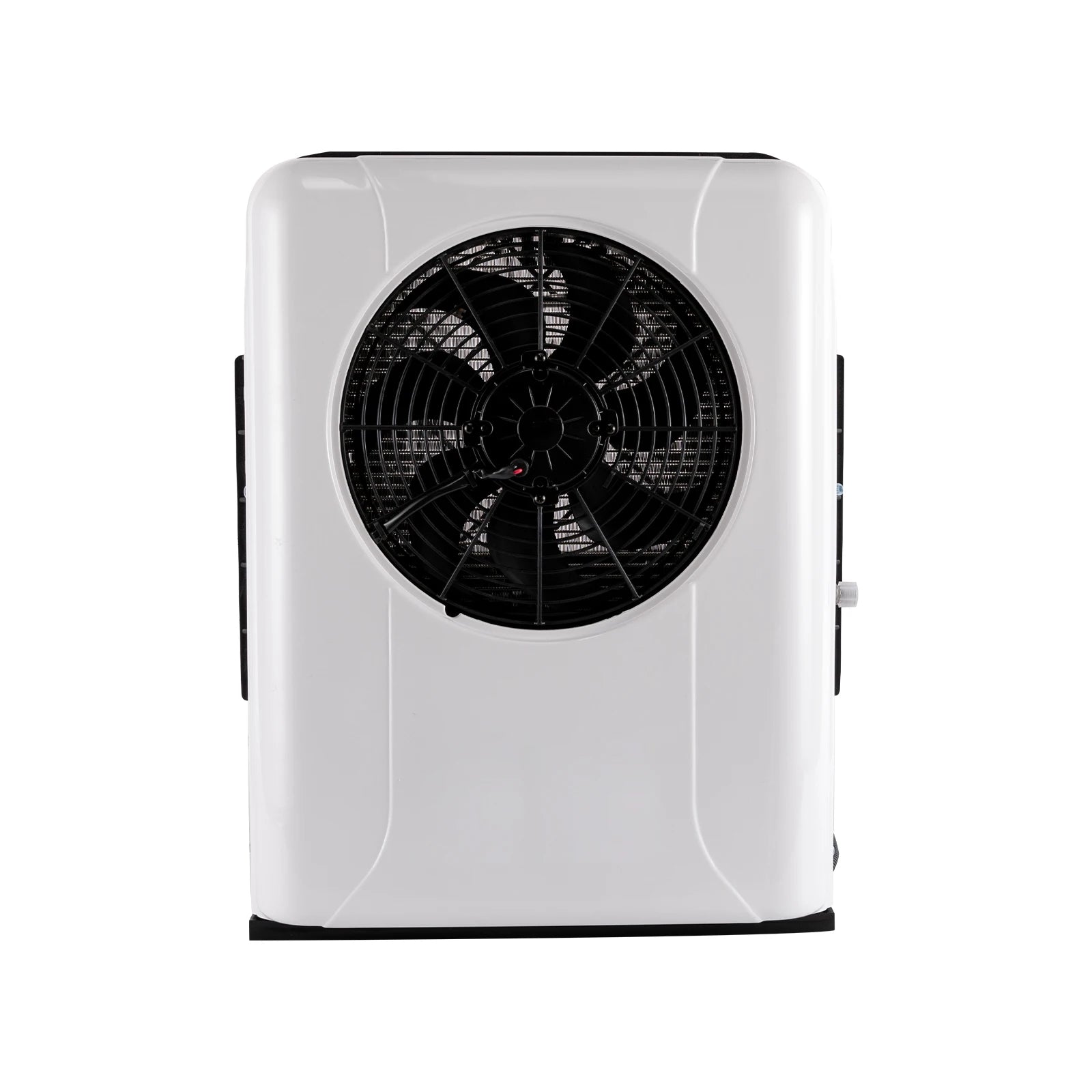

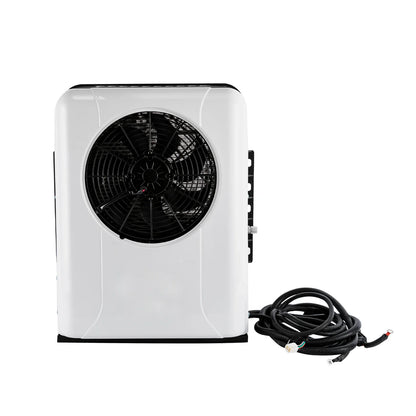

6.Fixed the external machine.
7.Install the internal machine: install an expansion valve.

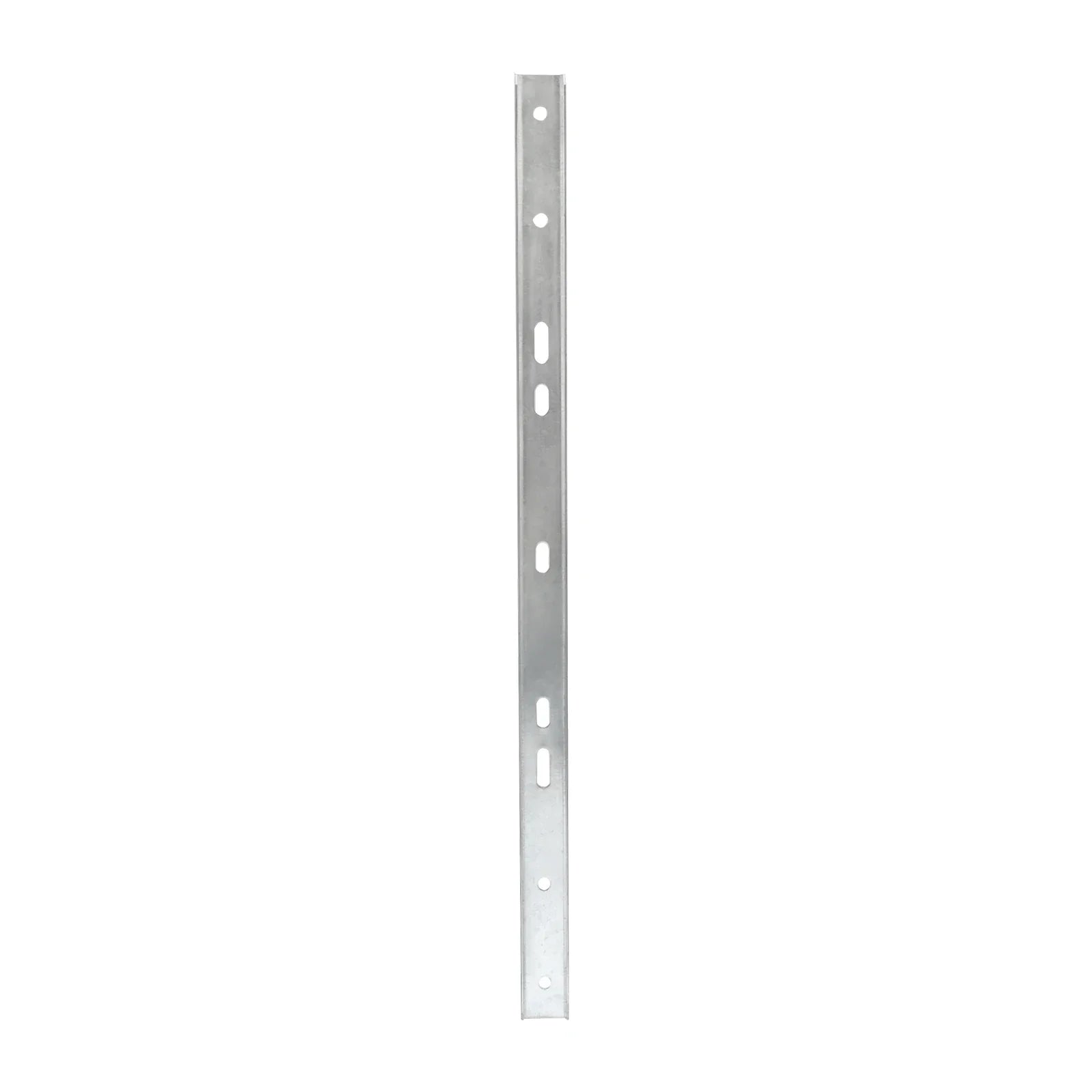

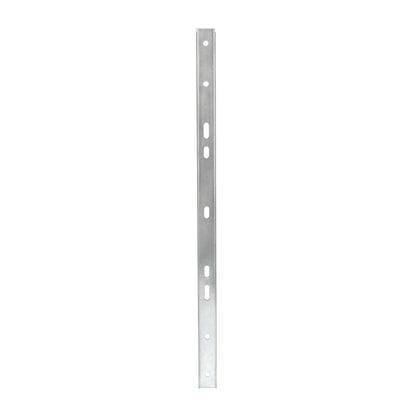

8.Fixed internal machine mounting plate.

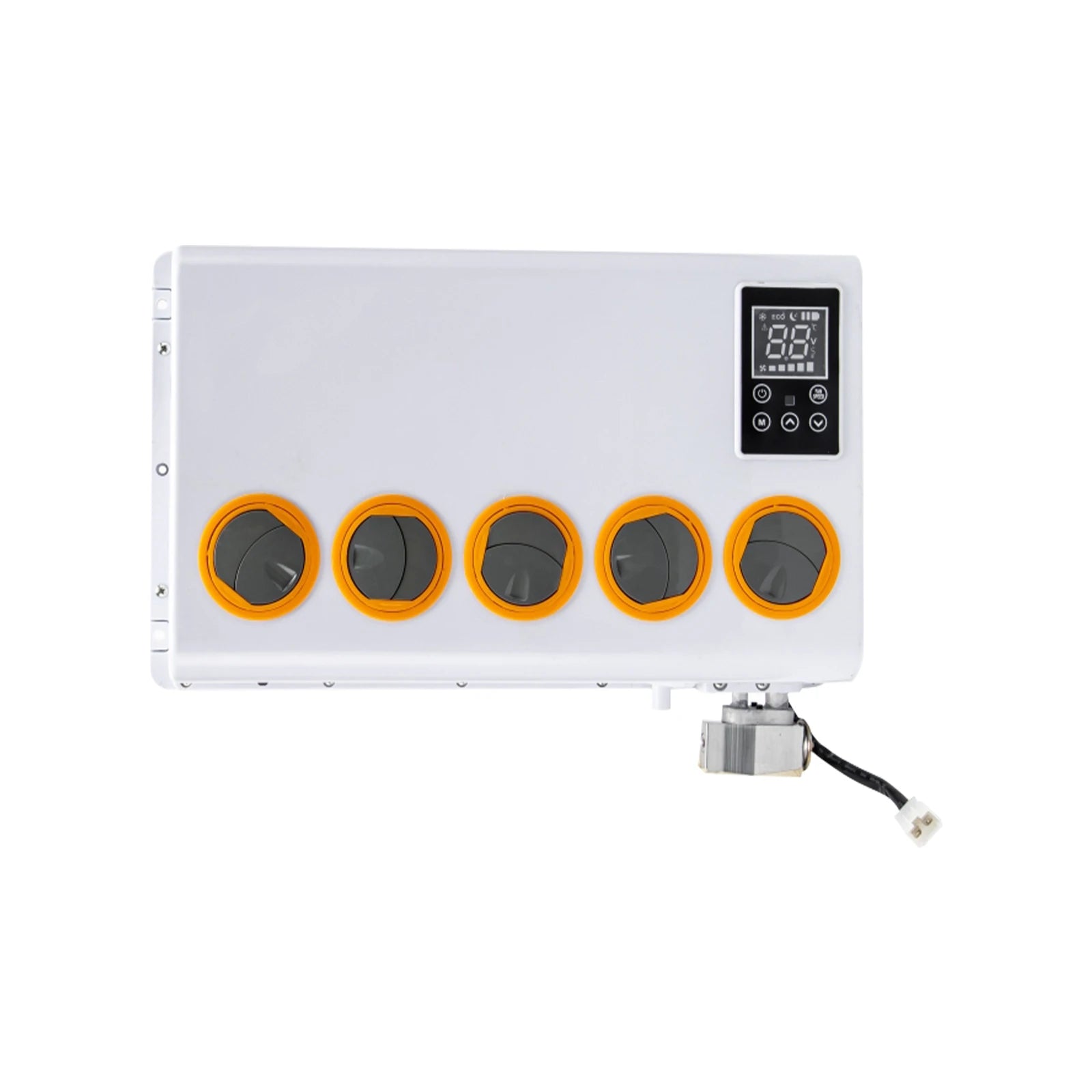

9.Fixed the internal machine.
10.3/8inch pipe (high-pressure pipe) connected to the condenser.

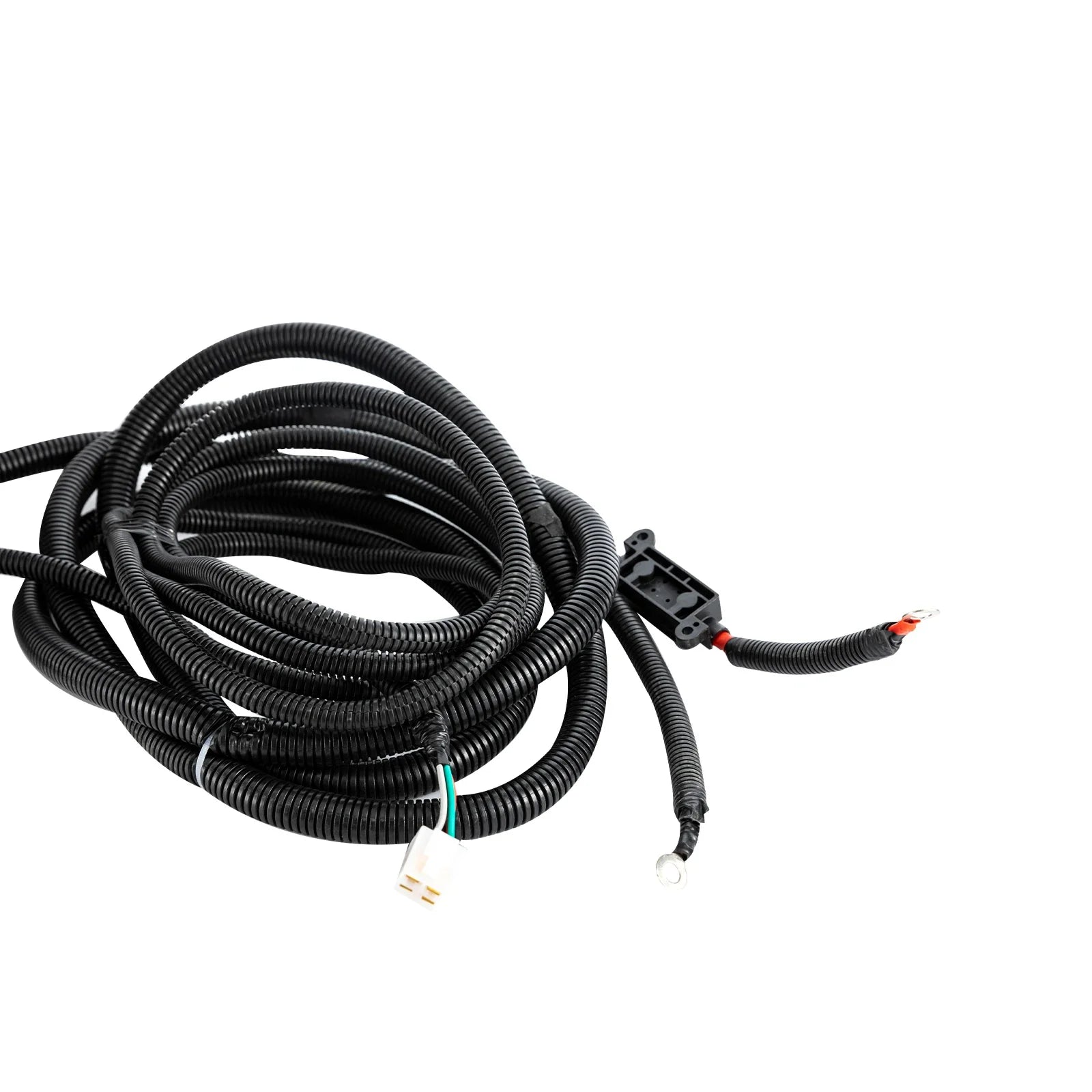

11.Connect internal and external machine wires and power cord.

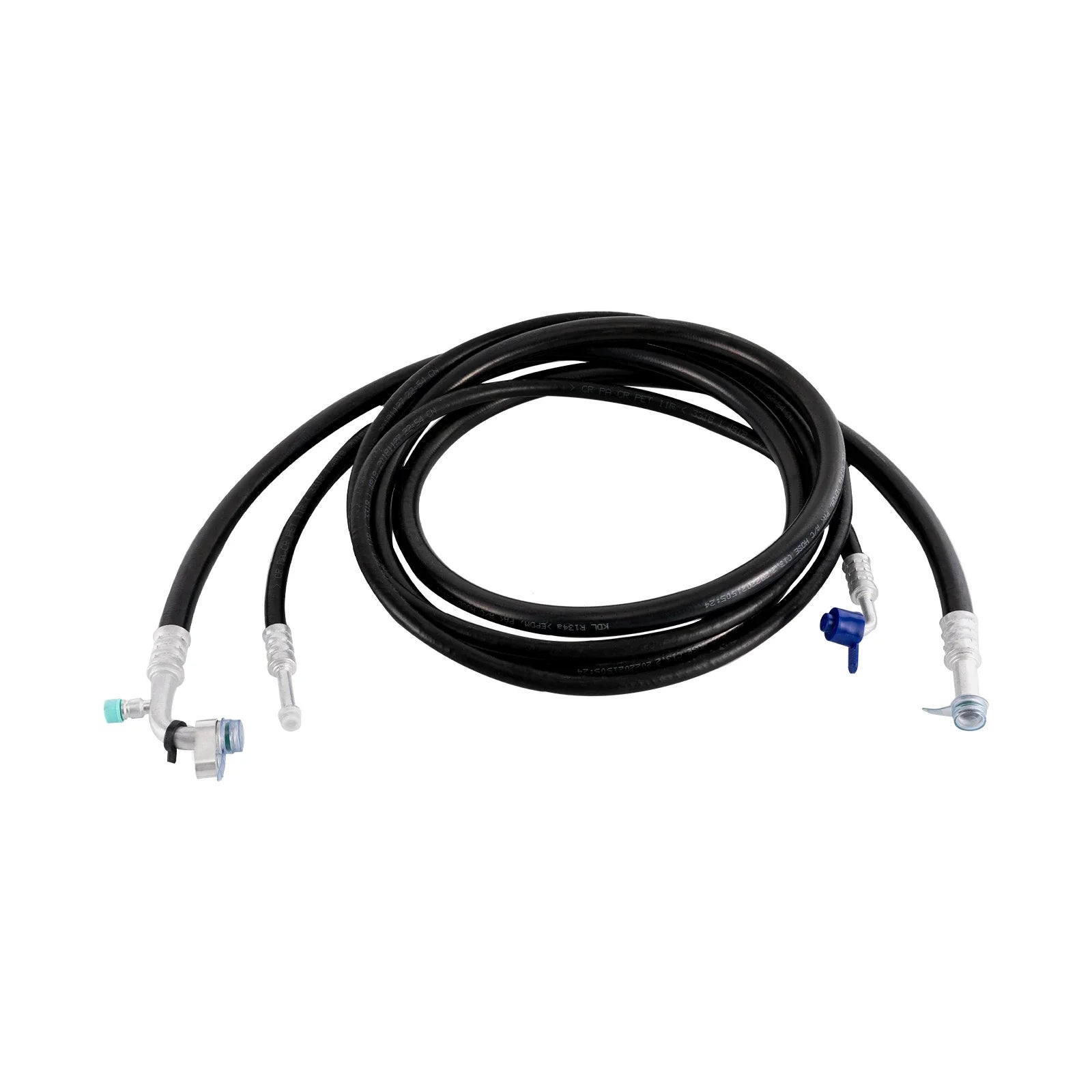

12.Connect internal and external pipes, and fixed the evaporation box.
13.Connect internal and external wires.

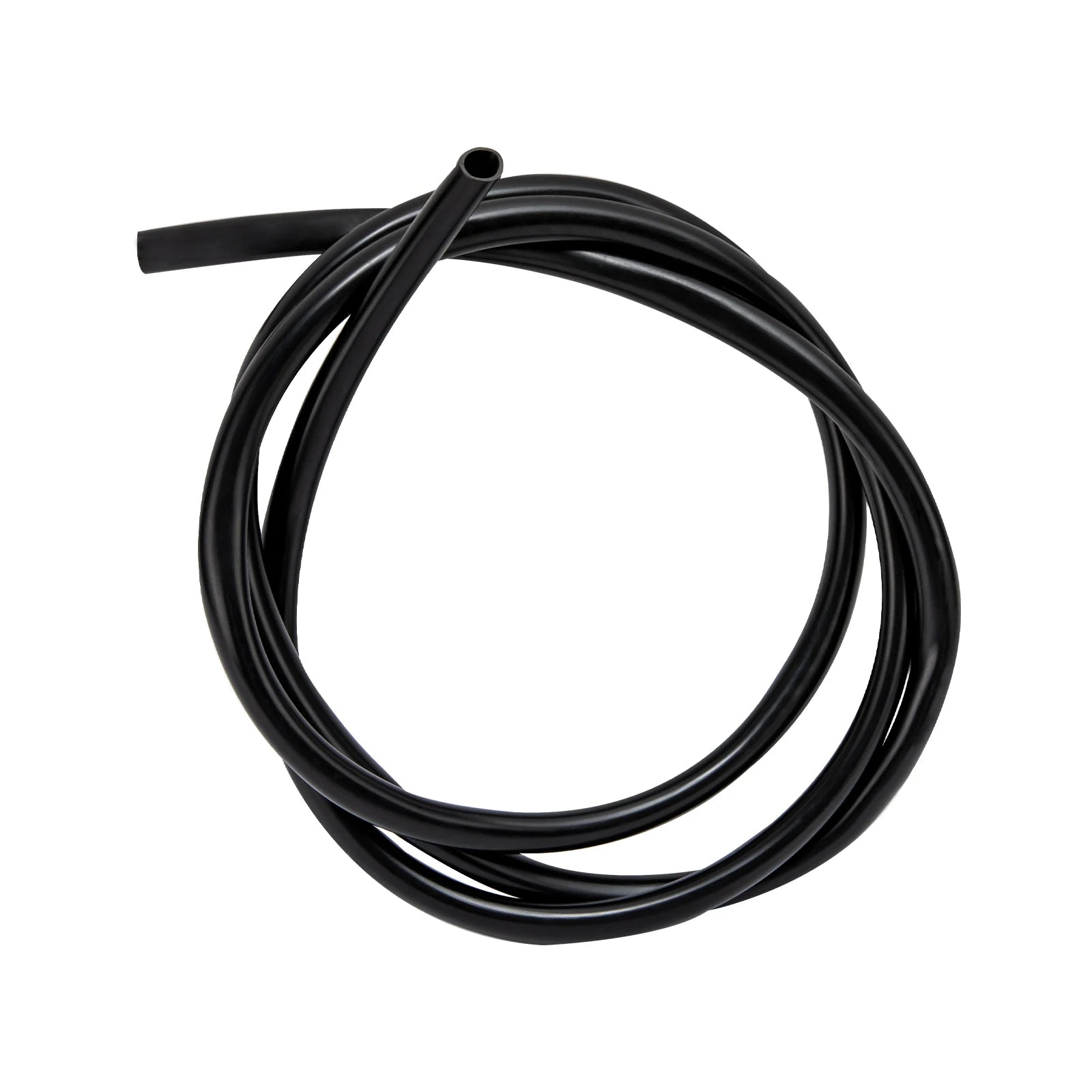

14.Install the drainage pipe.
15.Vacuum for 15-20 minutes.
16.Refill refrigerant (Pure R134a) 400-450g/0.88-0.99lbs.
17.The power cord is connected to the battery.
18.Install the outer casing.

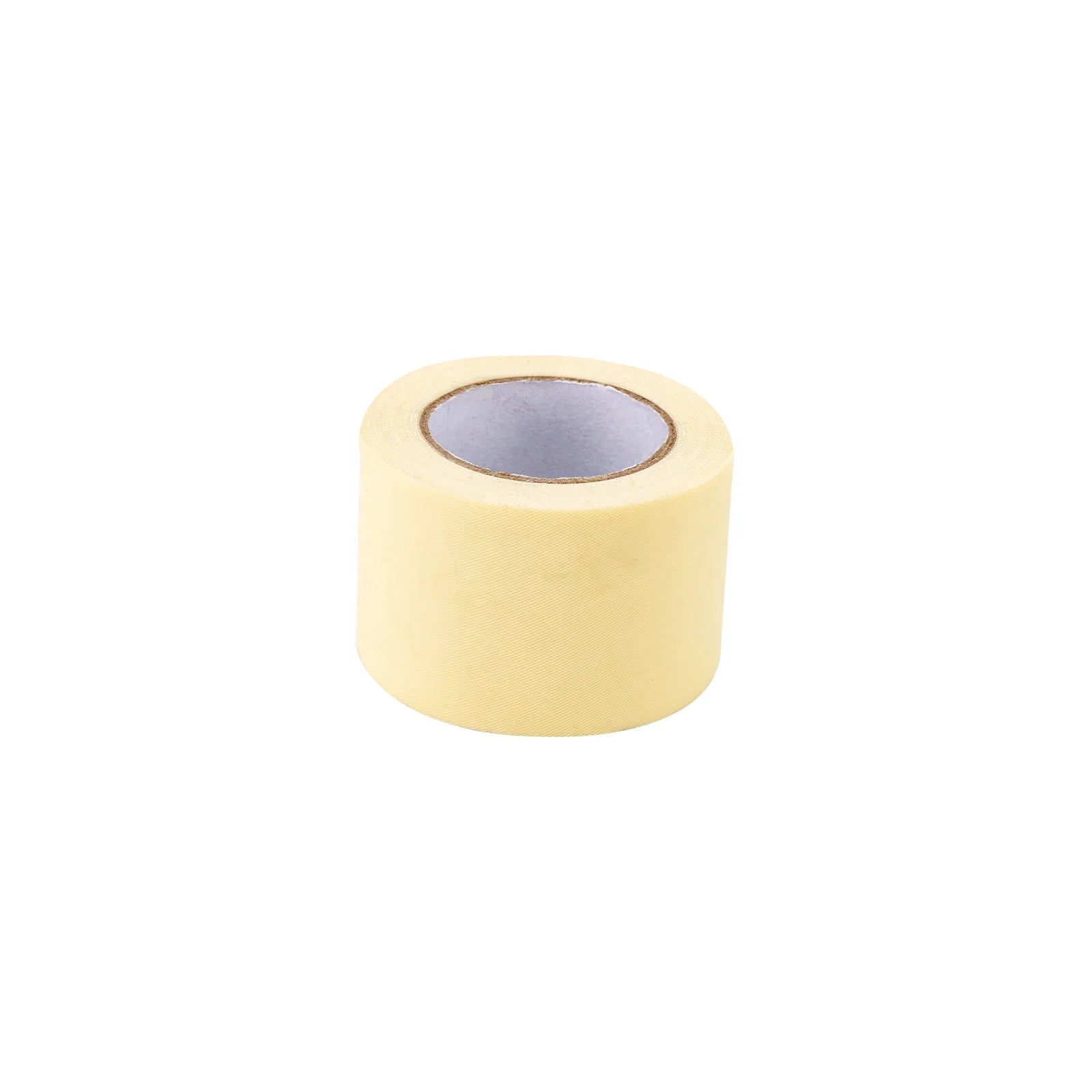

19.Winding tape to fix the internal and external machine connecting pipe and the internal and external machine connecting wire.
20.The installation is complete.

Specifications

Applicable Models: Car (Cab Within 6㎡/64ft²)
Color: White
Voltage: 12V
Rated Power: 960W
Maximum Current: 60A
Condition: New
Material: Copper, Aluminium, ABS
Installation Position: Inside the Cab; Outside the Cab
Refrigerating Capacity: 2000W/6800BTU
Refrigerant: R134A (400-450g/0.88-0.99lbs) (Not Included in the Package)
Oil: 90ml-120ml/0.02-0.03gal POE68
Speed Range: 1000-3000rpm
Way of Use: Direct Replacement
Number of Pieces: 2

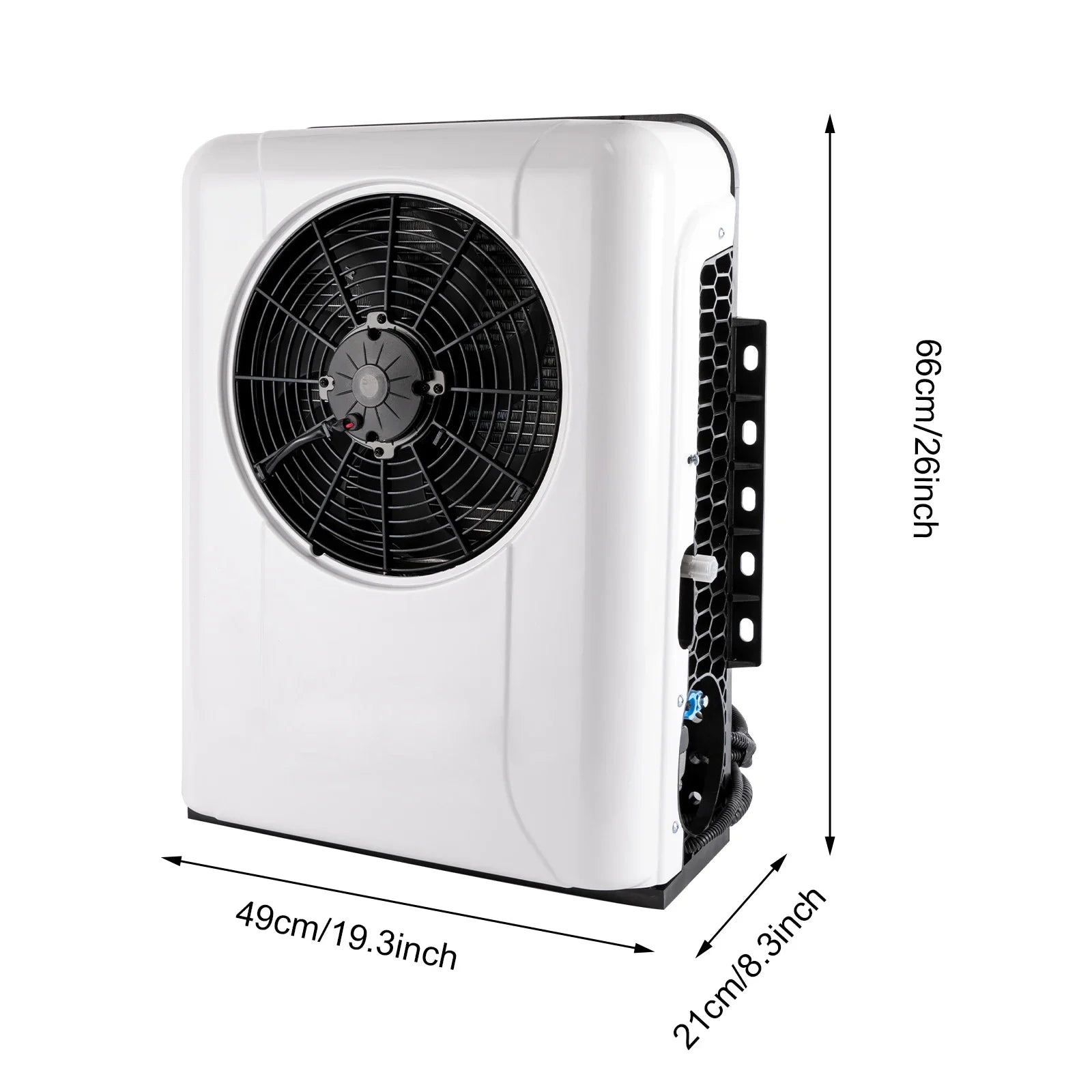

Outdoor Unit Size: 49*21*66cm/19.3*8.3*26inch

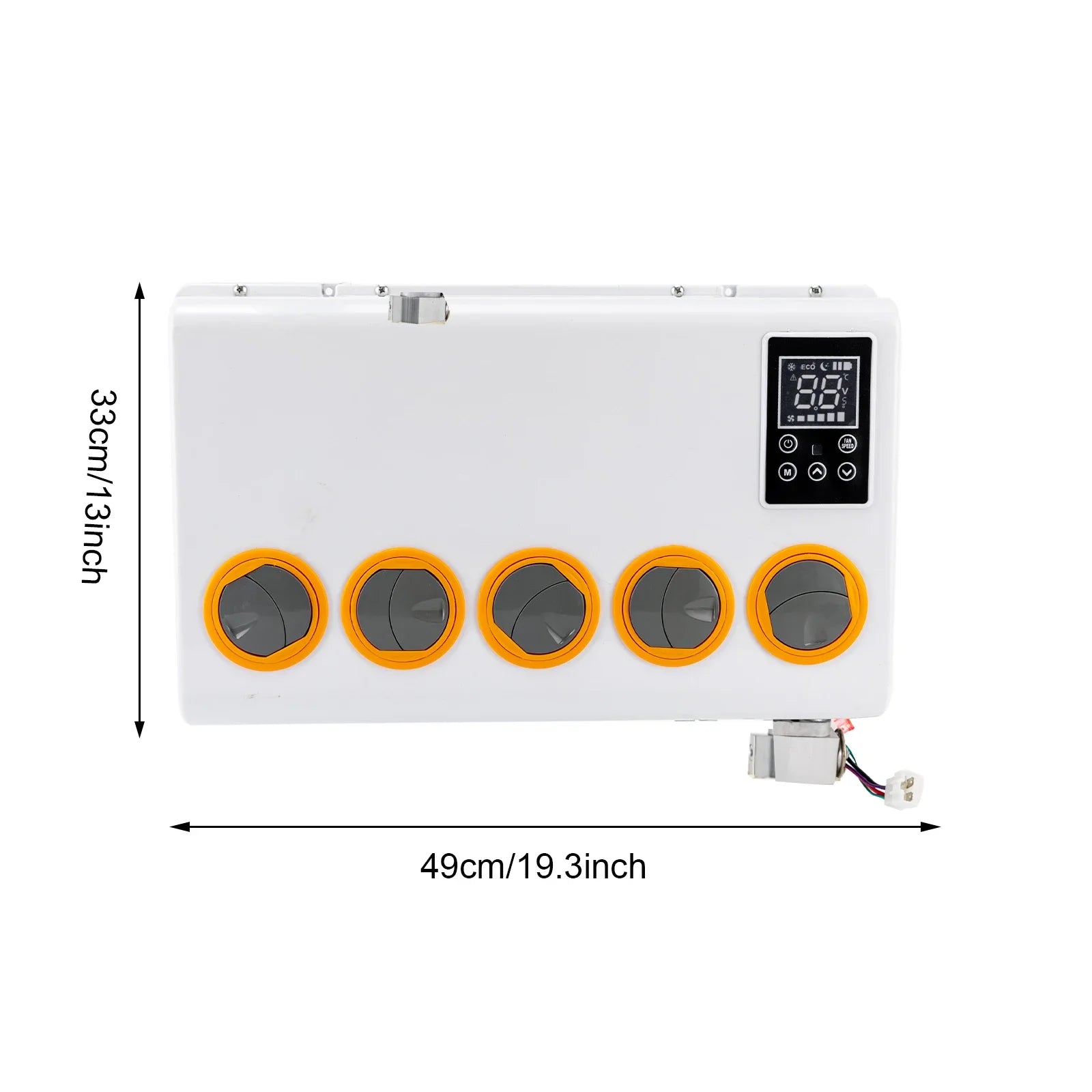

Indoor Unit Size：49*33cm/19.3*13inch

Key Features

Good Cooling Effect: The parking air conditioner is a kind of in-car air conditioner. It uses the on-board battery DC power supply (12V) to make the air conditioner run continuously to adjust and control the temperature, humidity, flow rate, and other parameters of the ambient air in the car, to fully meet the comfortable cooling needs of the truck driver.

Saving Energy: The parking air conditioner works with a truck battery without an engine. Meanwhile, it adopts digital frequency conversion and allows you to use the energy-saving mode when you sleep at night, saving you lots of energy.

Long Endurance: It can work continuously for about 6 to 8 hours on a full charge, which can meet your daily needs.

Highlights

Brand New, With High Quality
Direct Replacement
Trouble-free Installation
Stylish Appearance
Strong and Durable
Exquisite Workmanship
Easy to Clean
Stable Performance
Long Service Life

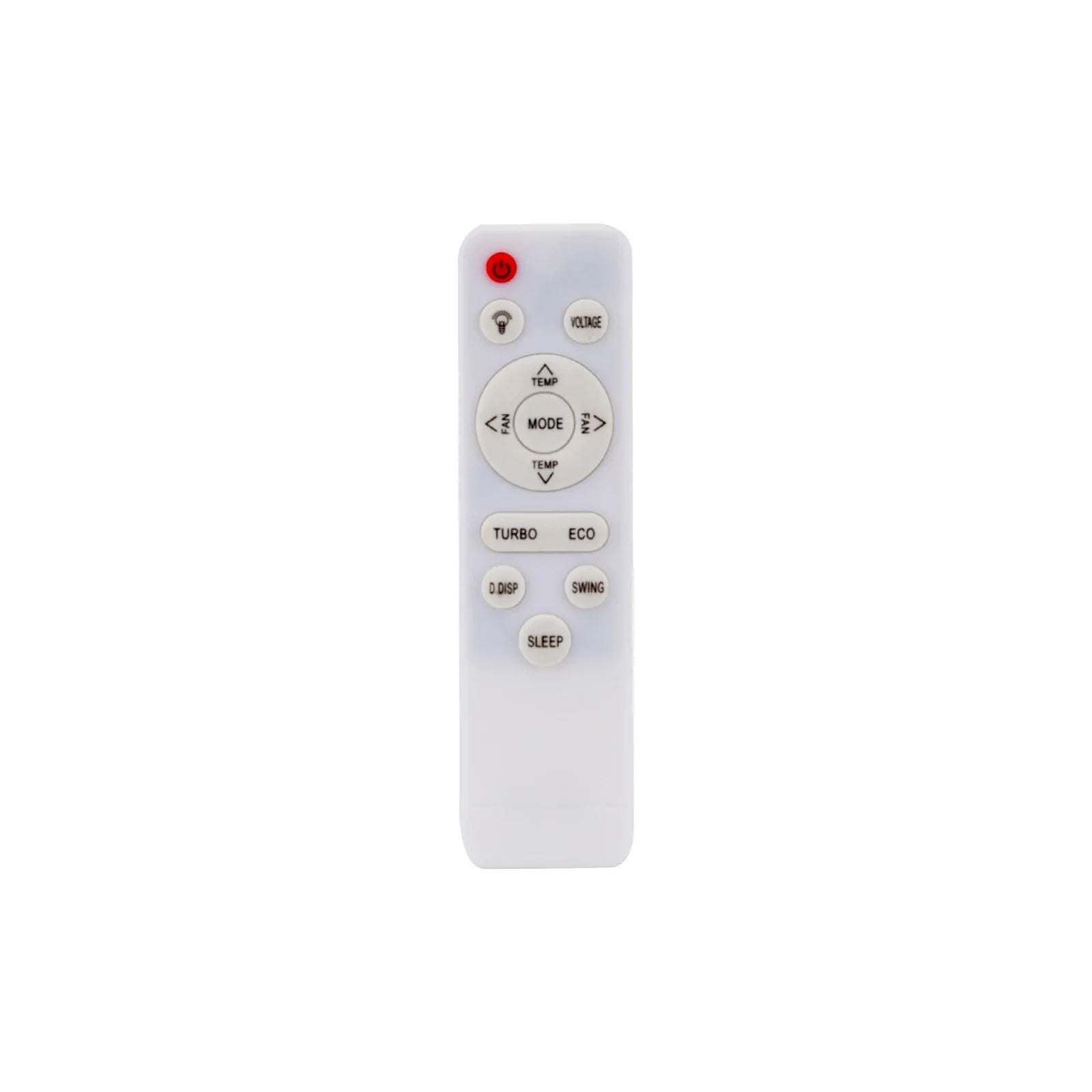

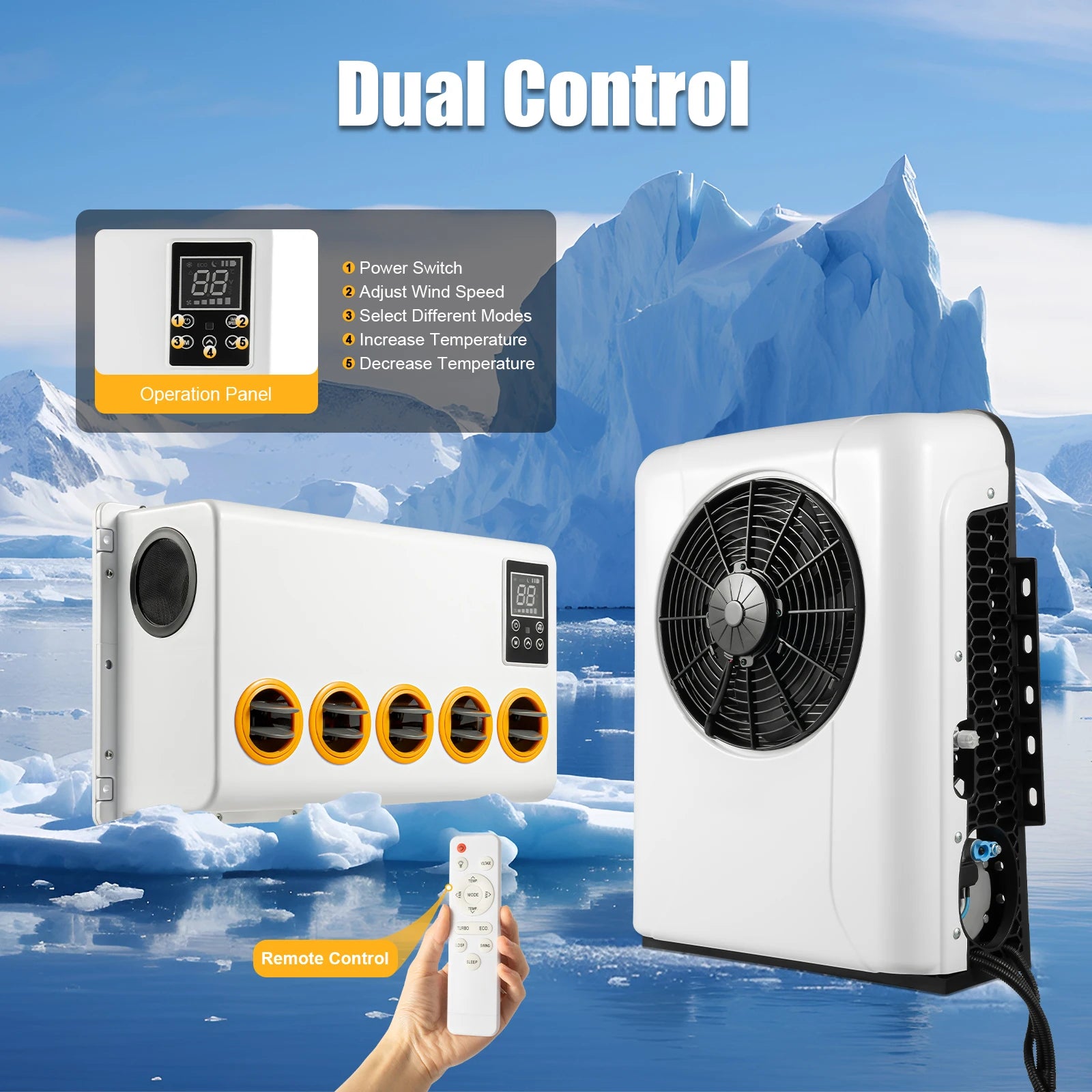

Remote Control

Notes

1.We strongly recommended professional installation. Please contact us if you have any questions.
2.Please allow the slight difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.

Fits (As a Reference)

For car (Cab Within 6㎡/64ft²).

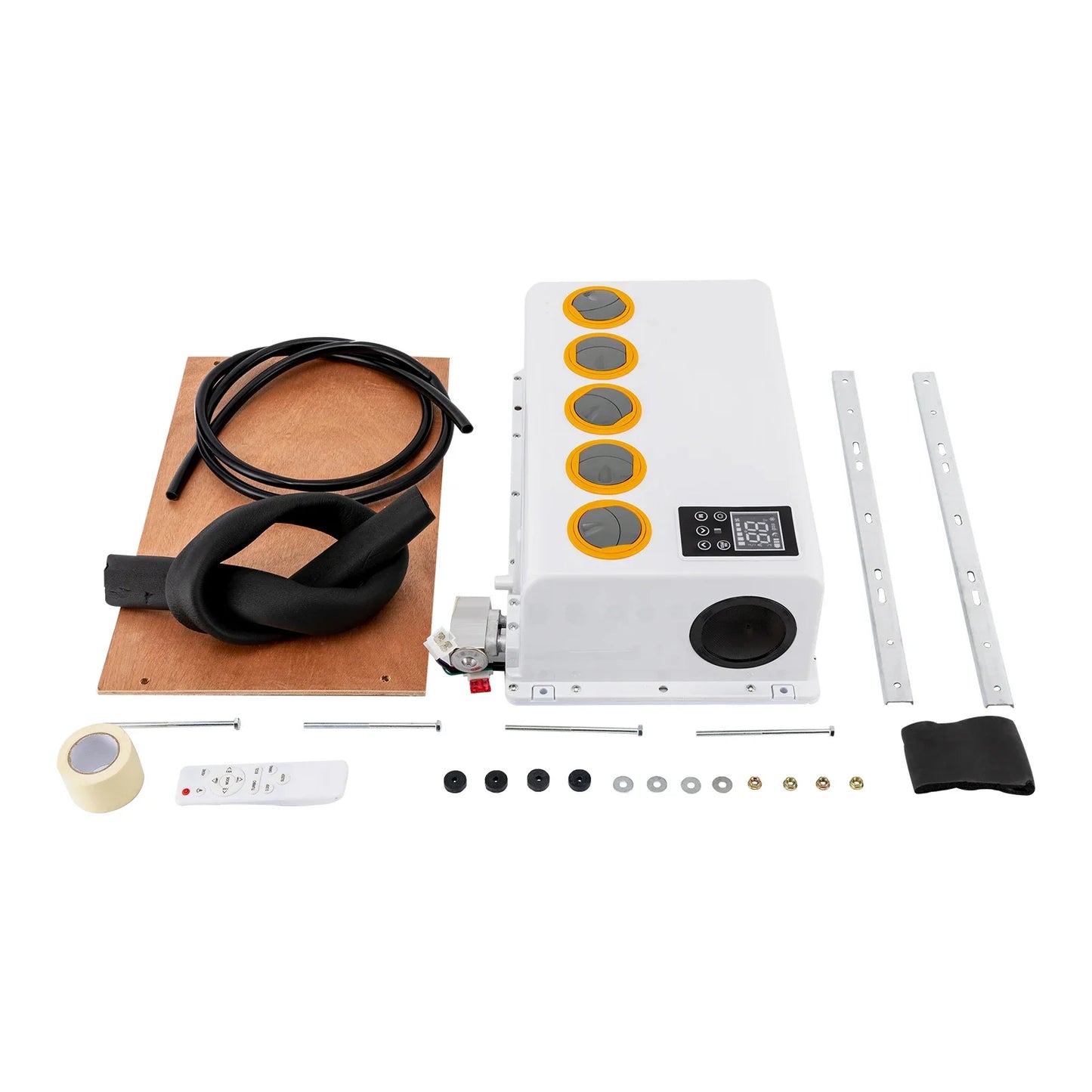

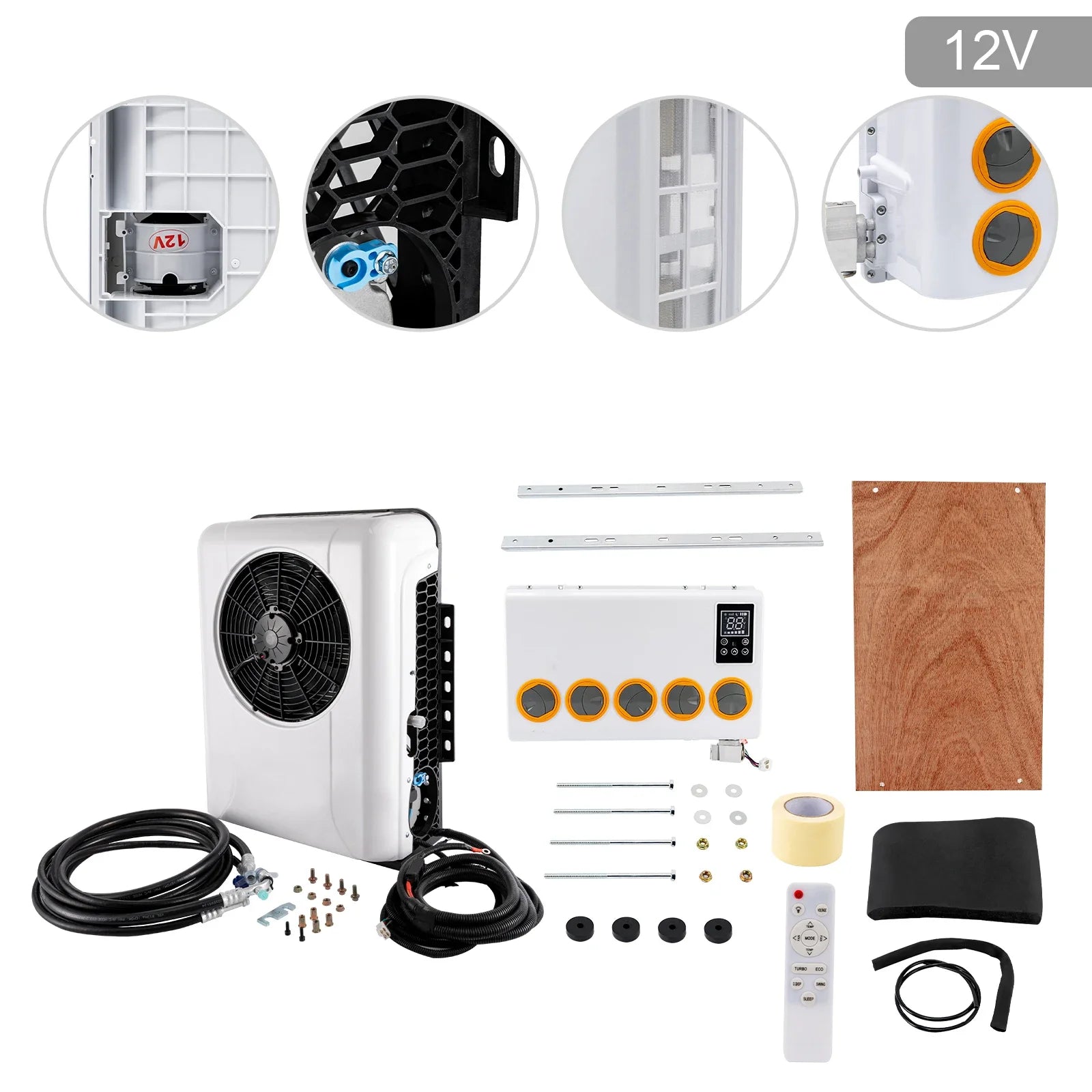

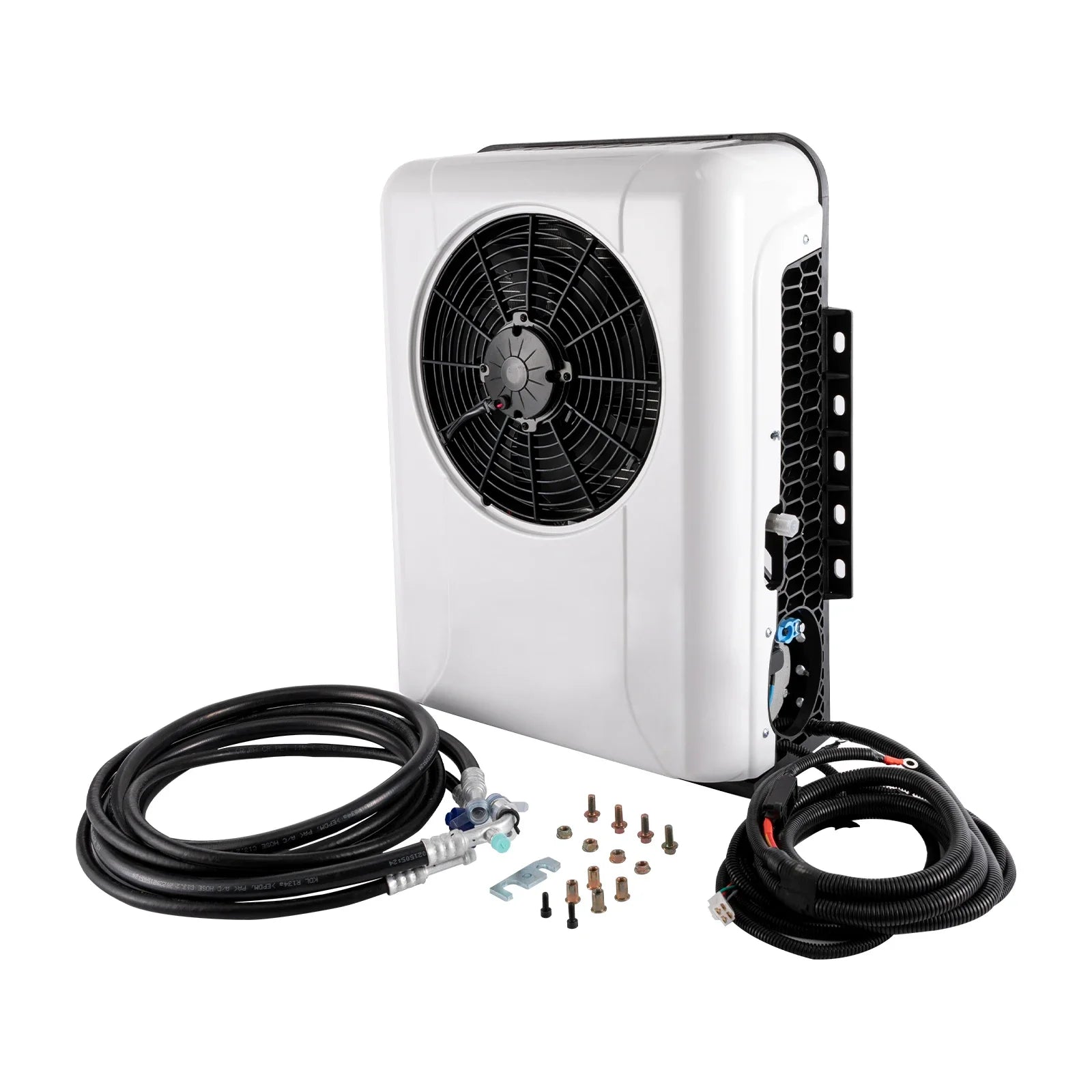

Package Included

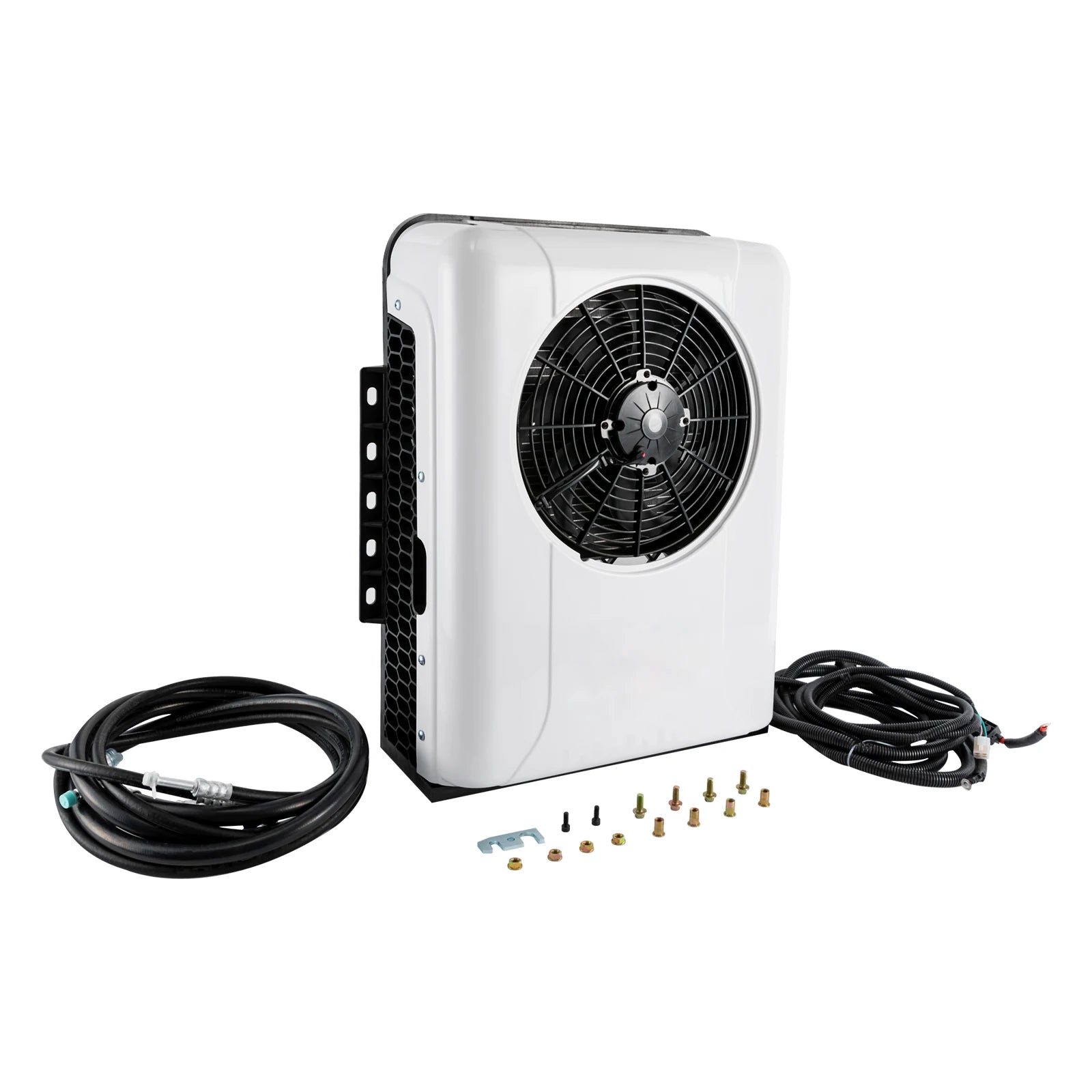

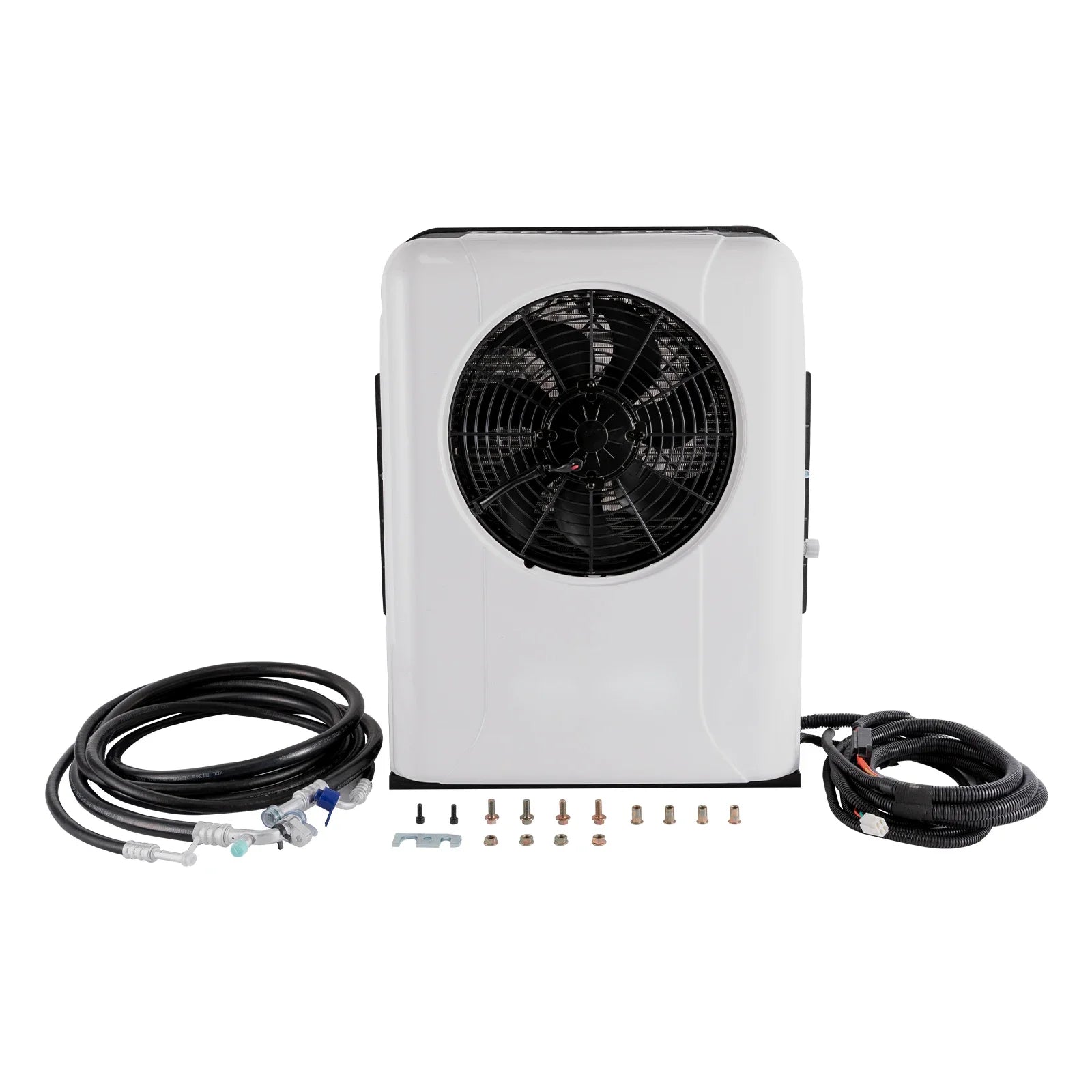

1* Air Conditioner Kit
1* Remote Control

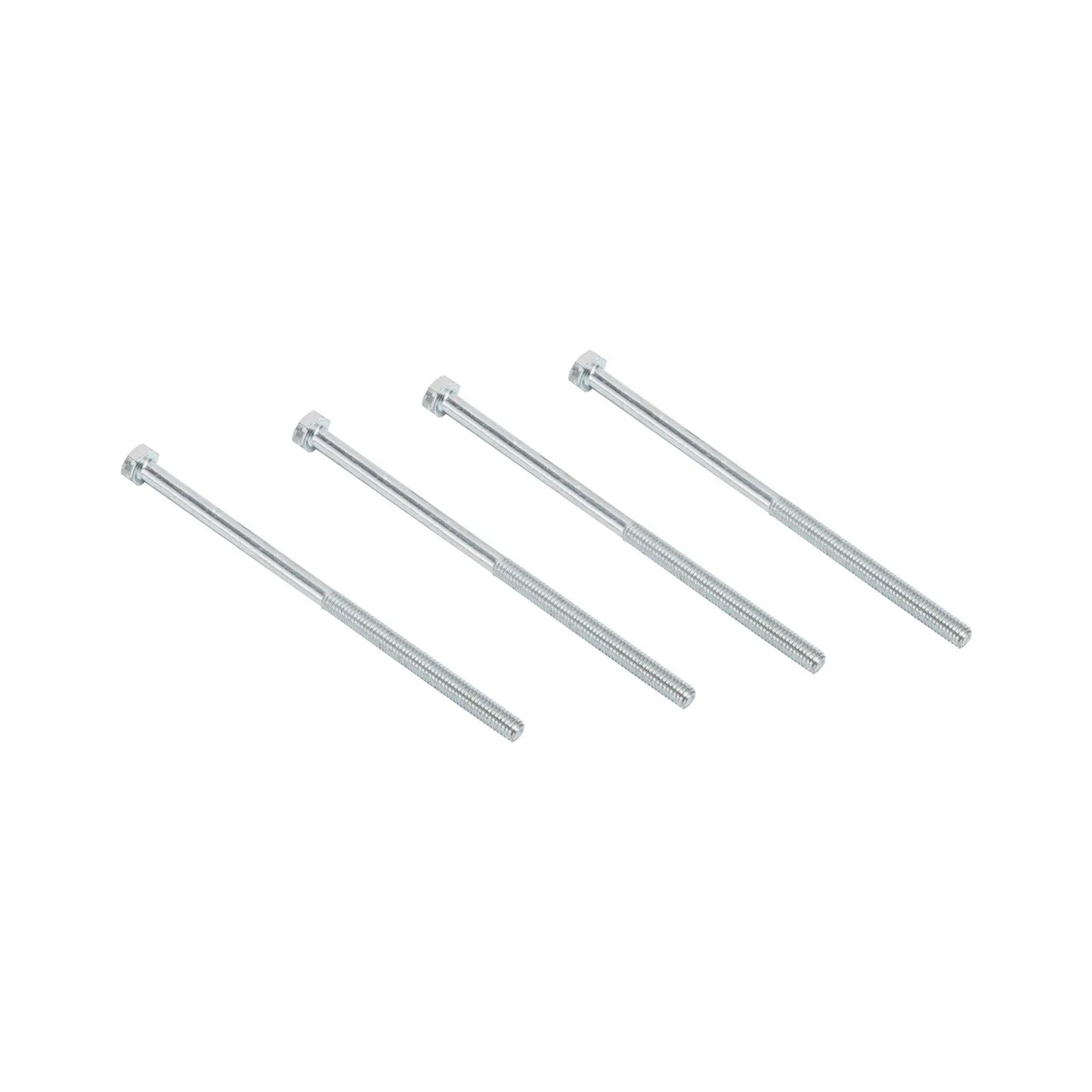

Other Accessories for Assembly
